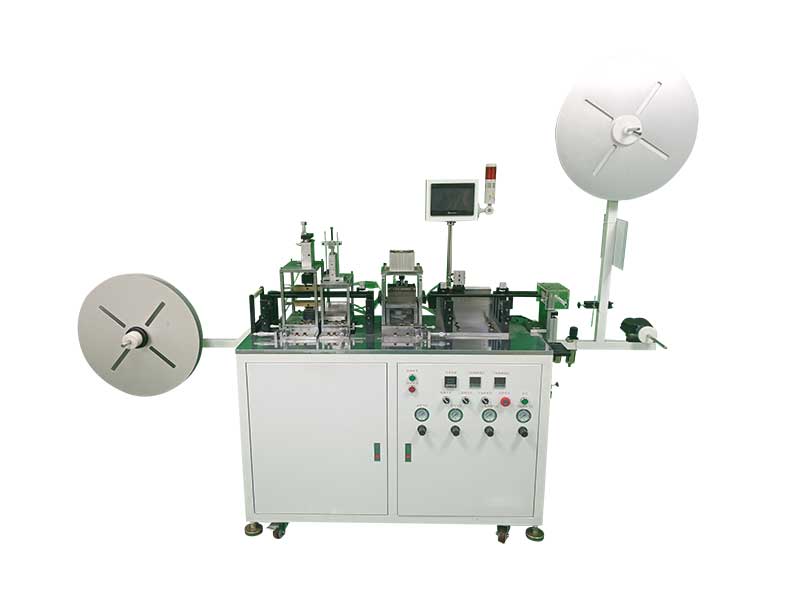

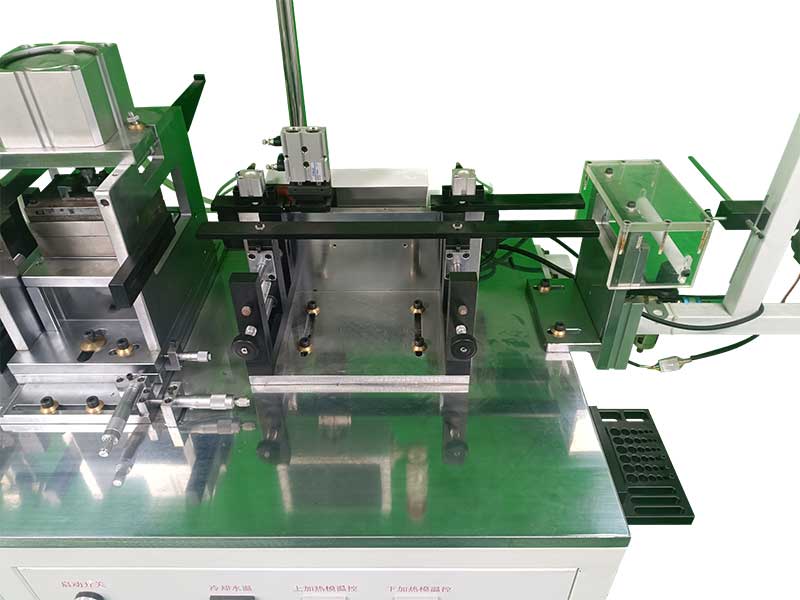

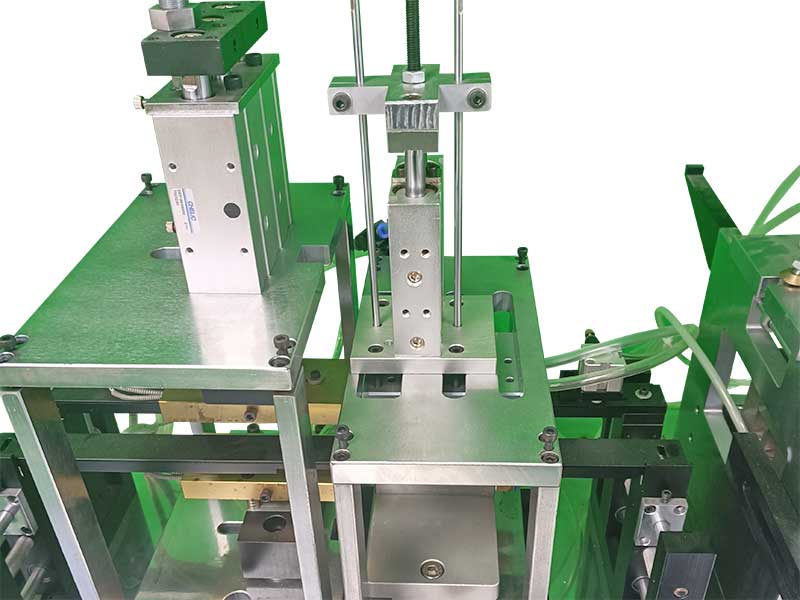

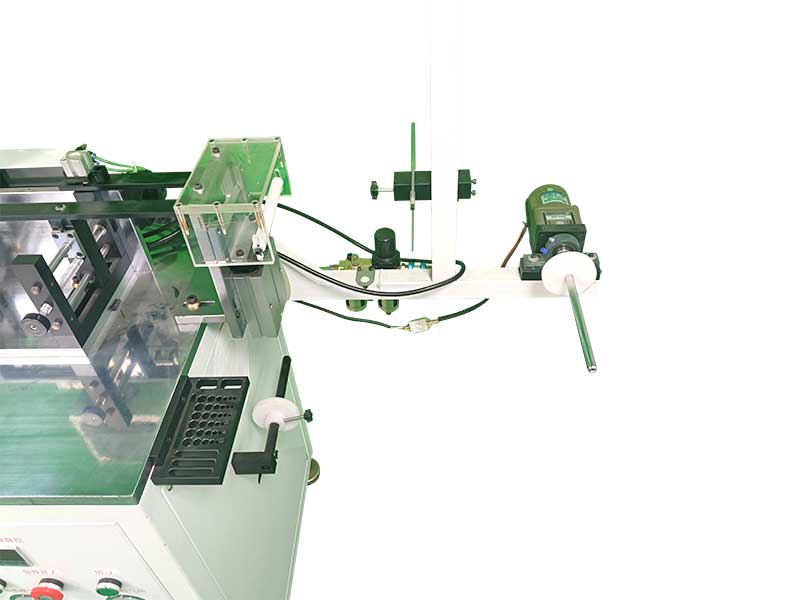

Carrier Tape Forming Machine CTF-01 This equipment is the most important part of SMD packaging materials - carrier tape. It is a flat-type carrier tape forming machine. The adjustment in the X and Y directions is achieved through a sliding structure in the groove, ensuring stable performance. The parallelism of the mold can be adjusted in the Z direction, which facilitates uniform heating of the carrier tape surface and cavity forming. It utilizes linear extraction, guided by a light rod, and driven by cylinders. The material feeding and releasing are controlled by sensors to start and stop the motor, capable of handling large reels with a diameter of up to 800mm. Additionally, it has a small size and a compact and reasonable overall structure. The system employs a user-friendly touchscreen control with a separate control panel, making it convenient for technicians to operate and considering human-machine ergonomics.

  • Detail

  • Product Specs

  • Features&Benefits efits

  • Options

  • Related Supplies

● Carrier tape forming width: 8~104mm
● Forming methods: Blowing, male and female molds
● Production speed: 160~350 meters (determined by the size)
● Machine dimensions: 2900mm (length) * 640mm (width) * 1940mm (height)
● Machine weight: 650KG
● Power supply: 3PW 380/220V 50~60HZ (5KW)
● Air supply requirement: 6~8 bar
● Compatible trays: 13-inch, 15-inch, 22-inch, 27-inch plastic or paper trays

Specification:CTF-01

● PLC controller for stable and reliable control system

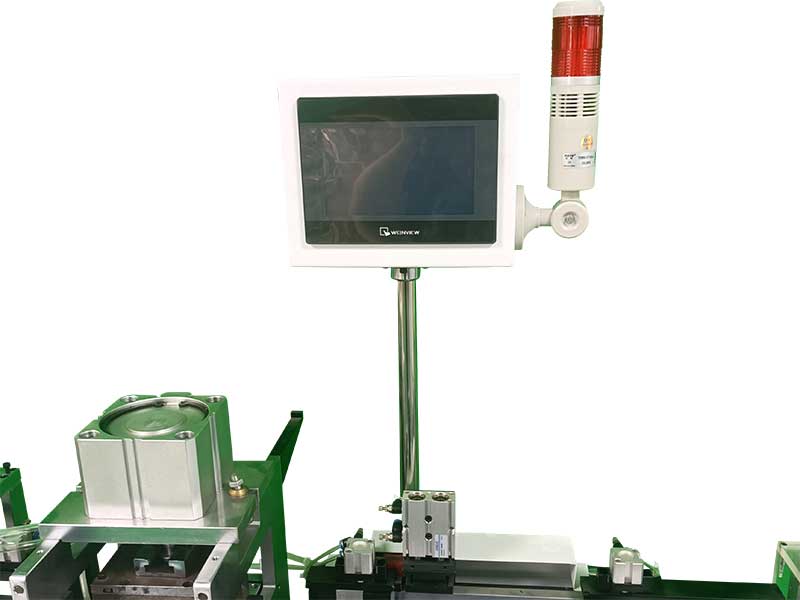

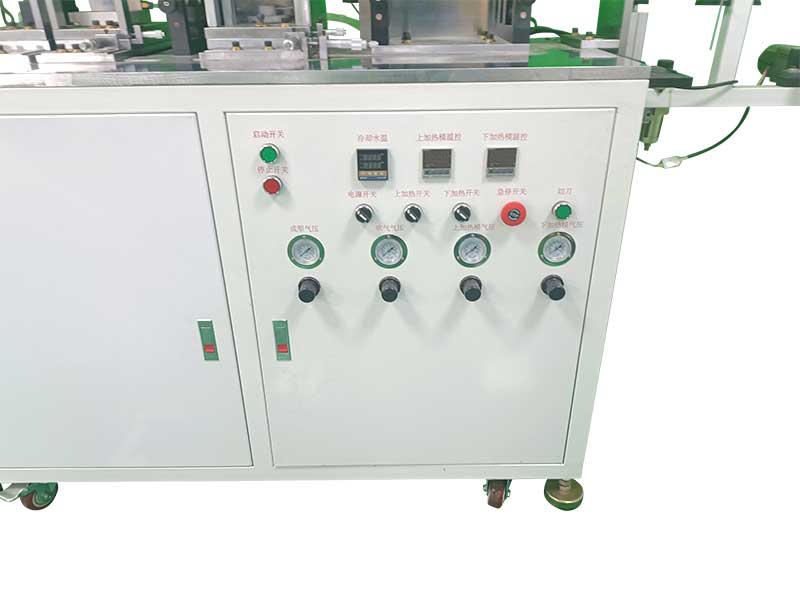

● User-friendly touch screen interface for easy and quick operation
● High-speed servo motor cam mechanism for fast and accurate material handling
● Integrated sealing cutter for quick and convenient replacement, with fine adjustment mechanism for precise sealing position adjustment
● Temperature controller using PID control mode for fast response and high control accuracy
● Automatic cutter and automatic feeding through vibration tray
● Parameter settings and production quantity can be saved in case of power loss
