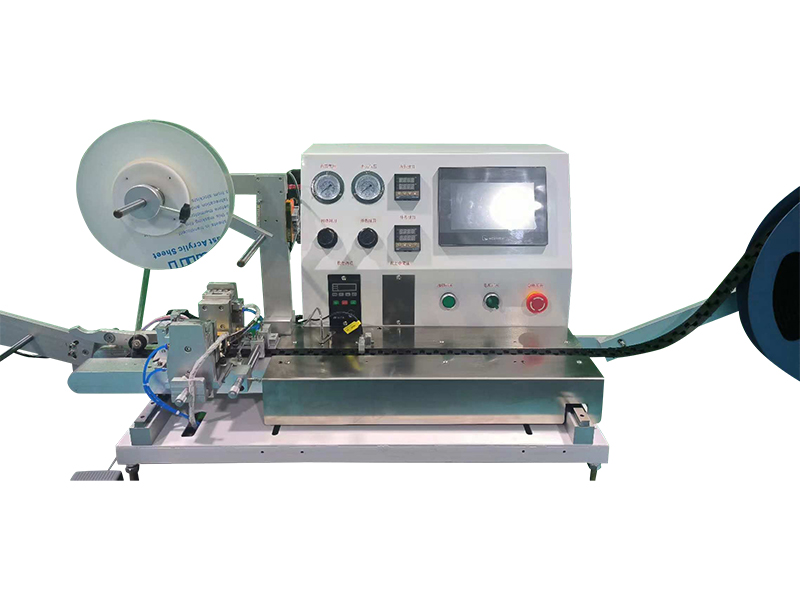

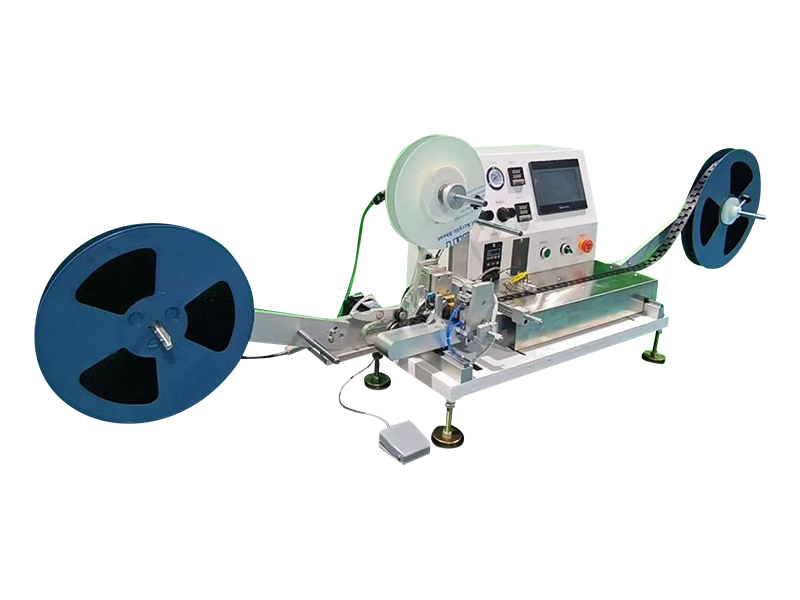

SRM-0401OEM Taping Machine Module This equipment is a customizable small module device that can be embedded in various automation equipment or production lines. It can be easily integrated into pick-and-place structures. This tape and reel machine can be used independently or in conjunction with automated feeding devices such as robotic arms for carrier tape packaging.

  • Detail

  • Product Specs

  • Features&Benefits

  • Options

  • Related Supplies

● Accommodates 8-56mm wide carrier tape
● Dimensions: H 587mm x W 666mm x D 600m
● Sealing Methods：PSA+Heat
● Power required: 120/230 VAC, 50/60 Hz, Compressed air 80 PSI

Specification:SRM-0401

● It can support integration with various external devices such as visual inspection, marking, measuring, and loading/unloading mechanisms
● The mechanical and software components can be sold separately

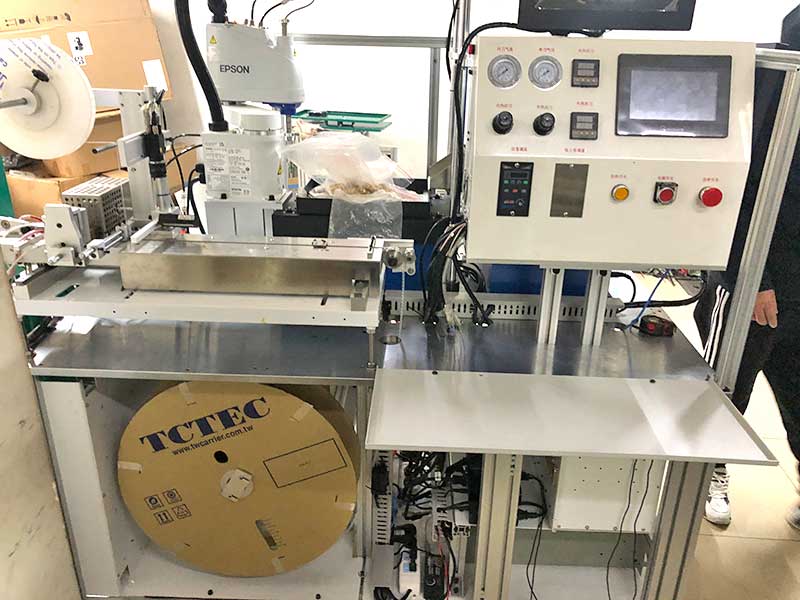

● It can be used as part of an automated system or as a standalone manual tape and reel machine
● The body size can be customized according to customer requirements

● Integration with MES system
● Camera-based appearance inspection
● Infrared leakage detection
● Laser marking
● Upgrading to automatic tape and reel machine with tube, tray, and vibratory bowl feeding systems

● Carrier Tape
● Cover Tape
● Reel
● Aluminum Foil Bag
● Vacuum Suction Cup
● Vacuum Packaging Machine
● Peel Force Tester
