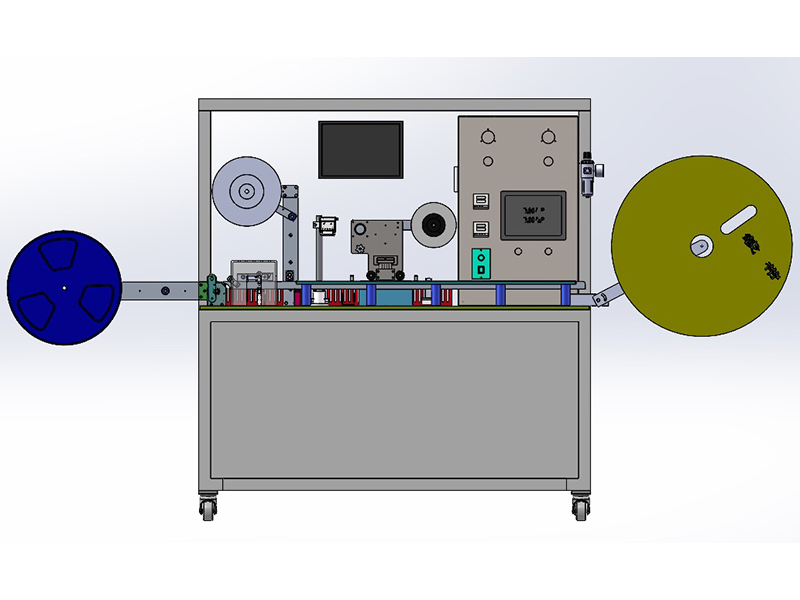

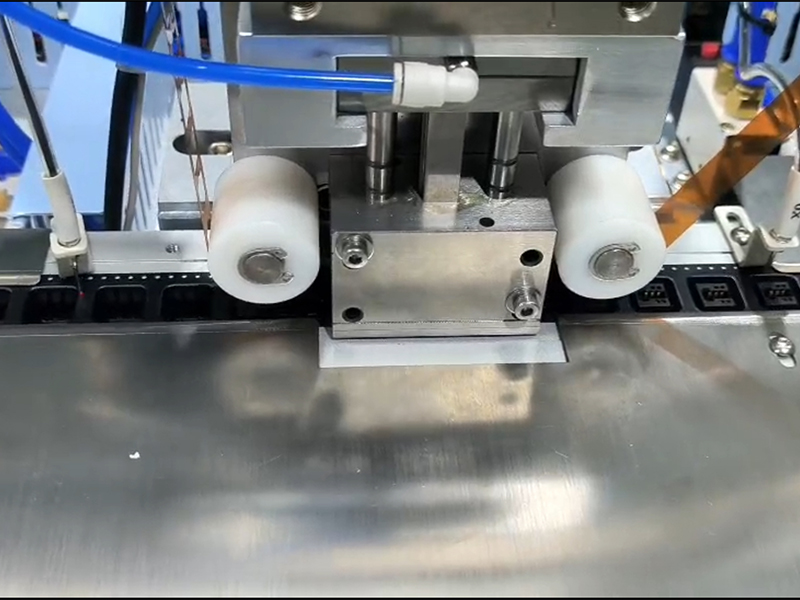

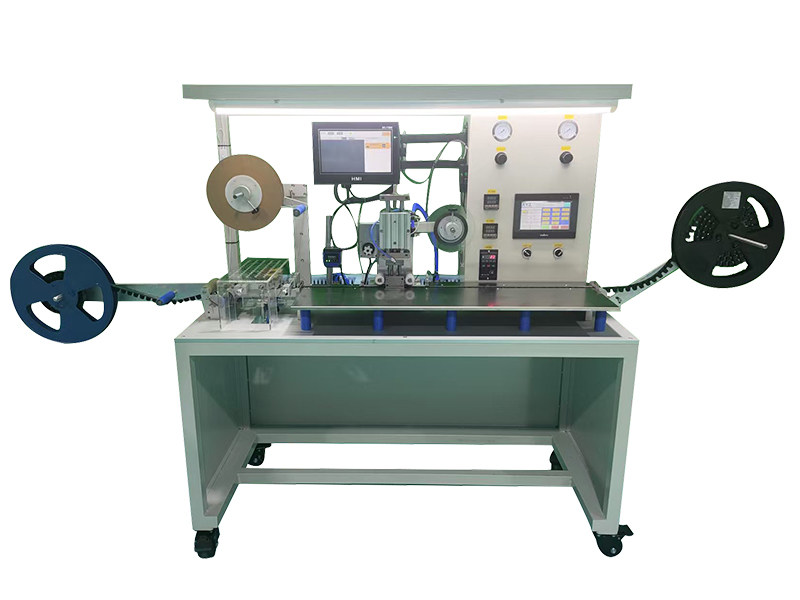

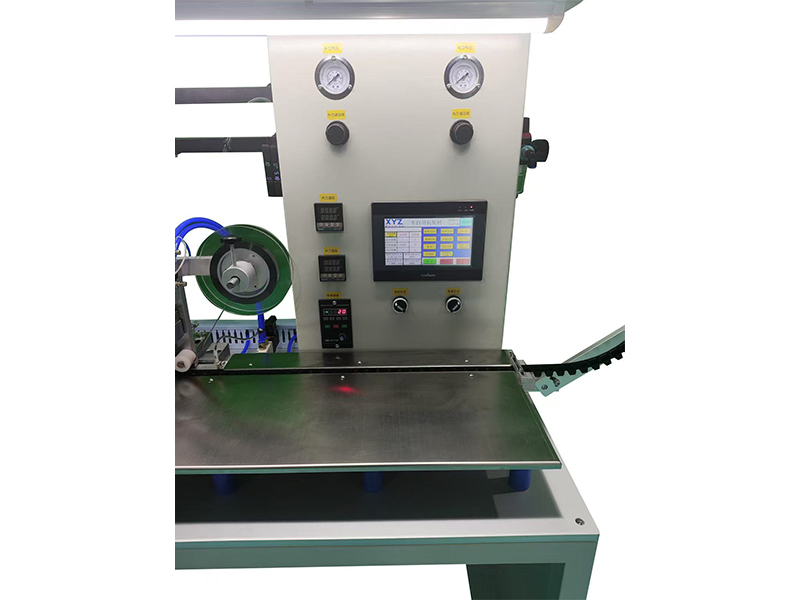

Vertical semi-automatic tape strapping machine SRM-0501 This model is a universal packaging platform for wide carrier tapes ranging from 12 to 88mm, capable of covering the entire strapping process from laboratory small-batch production to EMS mass production. The vertical layout combined with a high-rigidity frame of approximately 600kg/m² ensures stable operation and low vibration performance within a compact footprint. The closed-loop tension system equipped with dual servo drives ensures precise distance positioning and constant tension at each step, significantly enhancing the flatness of the winding tape. The heat sealing unit adopts PID control, with a temperature accuracy of ±2℃. The sealing is smooth and firm, effectively avoiding thermal drift. The quick-release guide rail and programmed formula management support the completion of specification switching within approximately 5 minutes, meeting the rapid conversion of multiple varieties. 7ʺ touch HMI offers a multi-language interface and reserves modular expansion interfaces such as AOI and Tiemala, leaving ample space for subsequent process upgrades.
